Xiong’an International Trade Center Project

Project Overview :Location: Core area of the Headquarters District in Xiong'an New Area's Start-up Zone, adjacent to key transportation hubs. Scale: Site Area: 162,000 sq.m Total Floor Area: 1.0629 million sq.m Investment: ¥12.569 billion (12.569 billion CNY). Function: Integrates high-end offices, commercial spaces, luxury hotels, serviced apartments, and aviation services, positioning itself as a "vibrant gateway, urban landmark, and urban business card" for Xiong'an.

Application

Building

Client

China MCC5 and CDCG

Location

Xiong'an New Area，China

Start Date

Jun 2024

Products Offered

Single-side Formwork

  • Soldier System For Single-side Formwork

Innovative Process

The Challenge

1.Single-Sided Formwork Construction of Basement Walls

When constructing basement walls where double-sided formwork is impractical (limited space or adjacent structures), single-sided formwork systems could be an efficient solution.

2.The exterior walls will be poured together with beams and slabs;

3.The single-sided formwork frame should be easy to transport;

The single-sided formwork support system is designed for easy transportation and assembly, particularly in confined construction spaces.

4.High quality concrete forming and finishing;

5.Height-Adjustable and Flexible Support

The height of the exterior wall varies greatly, requiring flexible support on one side and adjustable height.

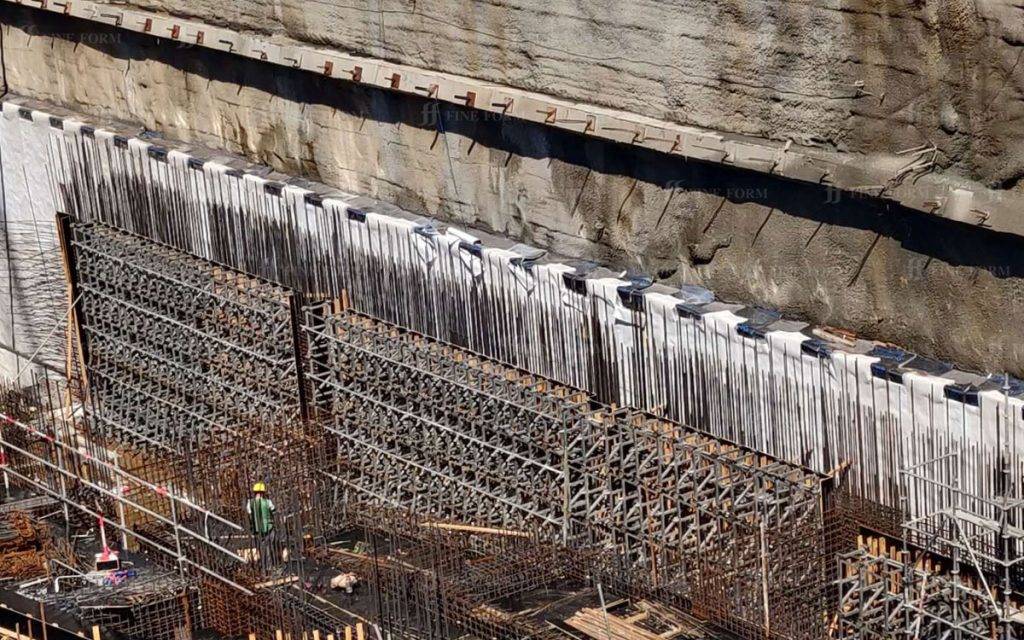

RS50 Soldier System For Single-side Formwork

Products Offered

RS50 Soldier System For Single-side Formwork

Single-side Formwork

Result And Feedback

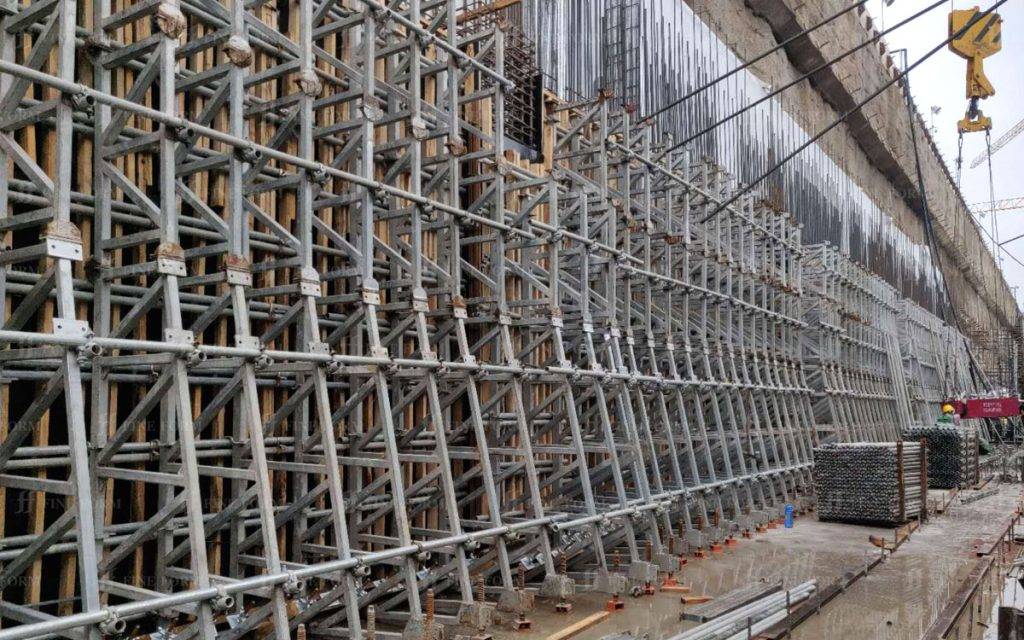

1.RS50 single side formwork support is assembled from 2300, 1200, and 600 standard sections to form an adjustable height structure.

2.Individual formwork frame can be manually handled and horizontally transferred by workers after beam and slab concrete pouring.

3.Truss-type design provides enhanced resistance to lateral pressure.

4.This approach reduces the number of exterior wall construction joints, thereby lower the risk of water seepage.
